Aerial Mapping

Aerial survey is a method of collecting geomatics or other imagery by using aeroplanes, helicopters, UAVs, balloons or other aerial methods. Some of typical types of data collected are aerial photography and LiDAR. It can also refer to the chart or map made by analyzing a region from the air. Aerial survey should be distinguished from satellite imagery technologies because of its better resolution, quality and atmospheric conditions. Today, aerial survey is sometimes recognized as a synonym for aerophotogrammetry, part of photogrammetry where the camera is placed in the air. Measurements on aerial images are provided by photogrammetric technologies and methods. Aerial photography is the taking of photographs of the ground from an elevated/direct-down position. Usually the camera is not supported by a ground-based structure. Platforms for aerial photography include fixed-wing aircraft, helicopters, multi-rotor Unmanned Aircraft Systems (UAS), balloons, blimps and dirigibles, rockets, pigeons, kites, parachutes, stand-alone telescoping and vehicle-mounted poles. Mounted cameras may be triggered remotely or automatically; hand-held photographs may be taken by a photographer. Lidar is a surveying technology that measures distance by illuminating a target with a laser light. Although thought by some to be an acronym of Light Detection And Ranging, the term lidar was actually created as a portmanteau of "light" and "radar". Lidar is popularly used as a technology to make high-resolution maps, with applications in geodesy, geomatics, archaeology, geography, geology, geomorphology, seismology, forestry, atmospheric physics, airborne laser swath mapping (ALSM) and laser altimetry. Aerial surveys are used for: Archaeology Fishery surveys Geophysics Hydrocarbon exploration Land survey Mining Monitoring wildlife and insect populations, called aerial census or sampling. Monitoring vegetation and ground cover Reconnaissance Transportation Projects in conjunction with Ground Surveys (Roadway, Bridge, Interstate) Equipments :

﷯Main Features : Full waveform analysis for unlimited number of target echoes Multiple-time-around (MTA) processing High laser pulse repetition rates up to 400 kHz up to 266 000 measurements/sec on the ground High ranging accuracy up to 20 mm High scan speed up to 200 lines/s Wide scan field of view up to 60° Parallel scan lines Interface for smooth integration of GPS

Main ﷯Features : Camera : WX 12 MP Battery : 11.1 V, 2150 mAh Ground Sampling Distance (GSD) : Down to 1.5 cm (0.6 in) per pixel Relative orthomosaic/3D model accuracy : 1-3x GSD Absolute horizontal/vertical accuracy (w/GCPs) : Down to 3 cm (1.2 in) / 5 cm (2 in) Absolute horizontal/vertical accuracy (no GCPs) : 1-5 m (3.3-16.4 ft) Automatic 3D flight planning : Yes Linear landing accuracy : Approx. 5 m (16.4 ft)

﷯Main Features : INTELLISHOOT STREAMLINES DATA COLLECTION AND POST-PROCESSING HIGH-WING DESIGN RESISTS WIND TO CAPTURE IMAGES WITHOUT MOTION BLUR CAMERA MOUNT HATCH AUTOMATICALLY CLOSES TO PROTECT LENS FOR LANDING FIELD-TESTED DURABILITY -20° - 110° F AND 13,000 FT ALTITUDE FLY 100 MINUTES, COVERING 1000 ACRES AT 5CM/PIXEL

1. Riegl LMS-Q680i

2. Sensefly Ebee Fix Wings

3. Event 38 E384 Fix Wings

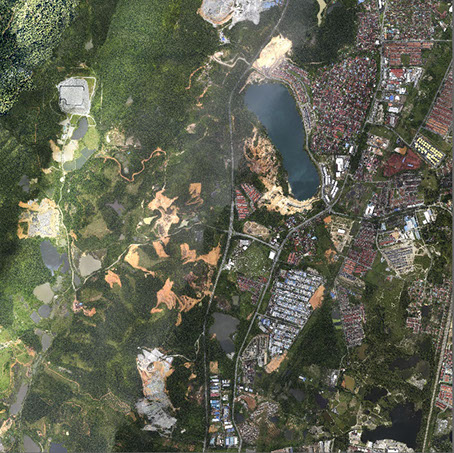

Orthophoto

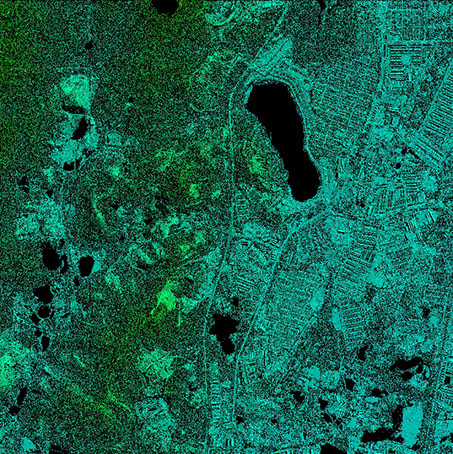

Digital Surface Model (DSM)

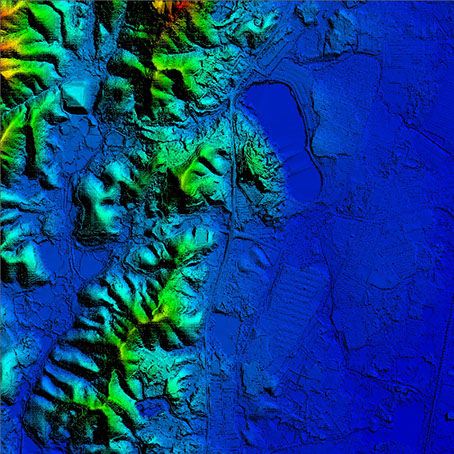

Digital Terrain Model (DTM)

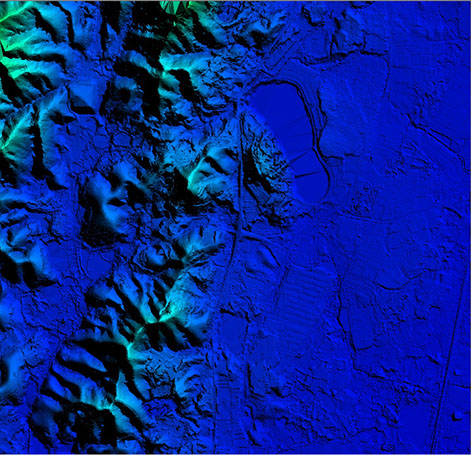

Triangulated Irregular Network (TIN)

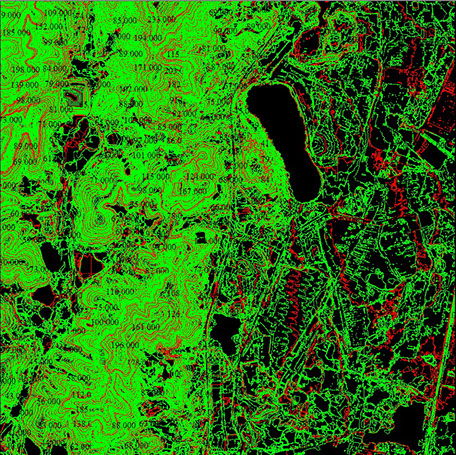

Contour

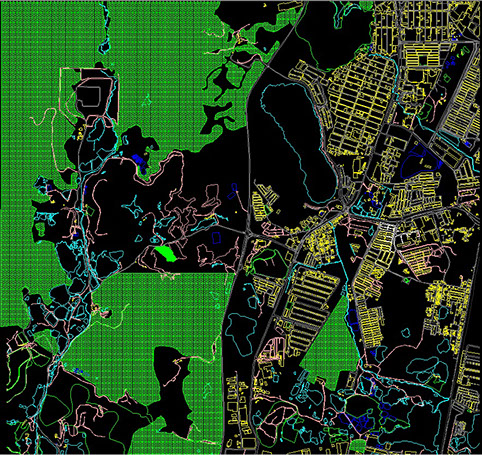

Vector

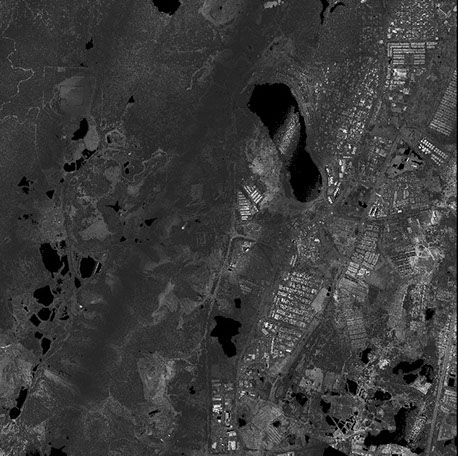

Intensity Map

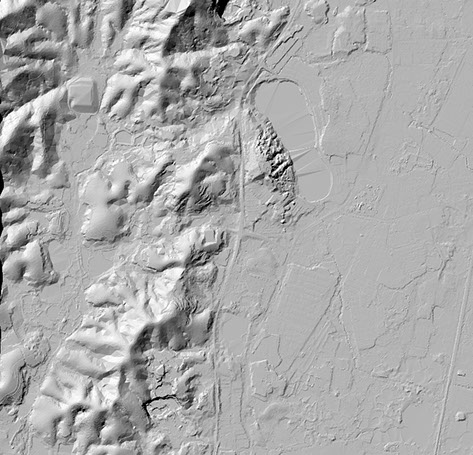

Hill shade

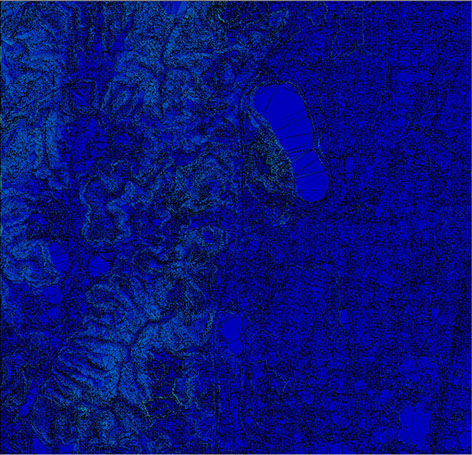

Slope Angle

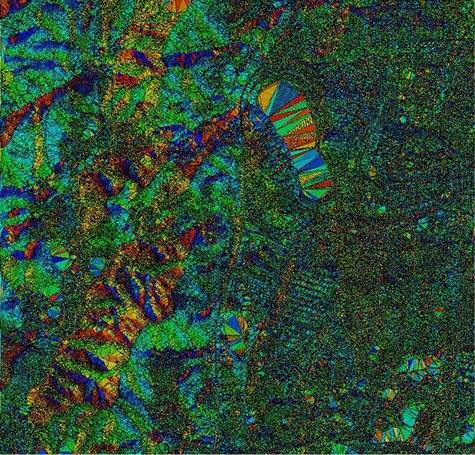

Slope Aspect
